On sale Bianco 808034 Icon Nxt Electric Pump Controllers Single Mode 1500W IP65.
Description
The nXt series of pump controls represents the next step in pressurised pump control.
Designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.
Ideal for pumps supplying clean, non-volatile liquids without fibers or solids in applications such as:
Household water supply
Irrigation
Water transfer
Washing systems
Pressure boosting
Technical Specifications
Brand
Bianco iCON nXt
Product Type
Pump Controller
Bar
10 Bar
Kilo Watts
1.5 kW
Casing Material
Technopolymer
Port Size Inlet
1″ BSPM Inlet
Port Size Outlet
1″ BSPM outlet
Volts
240 V
NXT
Function
ON/OFF
Modes
1
Size
1.5Kw
Rated Voltage
220-240V AC
Max Amps
10
Rated Power
1500w
Rating
IP65
Union Size
1″
Start Pressure
2.2 bar (32PSi)
Stop Pressure
on no flow
Max Pressure
10 bar (145PSI)
Max Liquid Temp
40°C
Cable to Pump
Plug and Play
Flylead for Pump
When sold as control only
Power Cable
10AMP
Communication
–
Accessories (Sold Separately)
–
1 ¼ Union Kit
Features
Digital display gives you a real time indication of system pressure
Anti-cycle Protection
Dry run protection with auto restart function that tests for water availability every 24hrs
Anti-seize function if pump has not operated for last 24 hours
Controller automatically restarts pump after a power failure
Easy assembly and removal using push-n-connect fitting with U clip
Complies to AS/NZ 4020 drinking water standard
Over pressure prot
Drinking Water Approved
AS/NZS 4020 Drinking Water Approved.
Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.
This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, wont support the growth of micro-organisms and wont change the taste or appearance of your water.
The product image shown is for illustration purpose only
SKU: 808034
. Browse our range of products available on sale in Australia.
Tools and Hardware Australia
Bianco 808036 Icon Nxt Electric Pump Controllers Triple Mode 2200W IP65 2.2KW Australia On sale Bianco 808036 Icon Nxt Electric Pump Controllers Triple Mode 2200W IP65 2.2KW. Description The nXt series of pump controls represents the next step in pressurised pump control. Designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most. Ideal for pumps supplying clean, non-volatile liquids without fibers or solids in applications such as: Household water…
Bianco 808035 Icon Nxt Electric Pump Controllers Dual Mode 2200W IP65 2.2KW Australia On sale Bianco 808035 Icon Nxt Electric Pump Controllers Dual Mode 2200W IP65 2.2KW. Description The nXt series of pump controls represents the next step in pressurised pump control. Designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most. Ideal for pumps supplying clean, non-volatile liquids without fibers or solids in applications such as: Household water…
Bianco 802676 Drainage Pump Controllers 3 Ph 415V In, 3 Ph 415V Out, 7.5KW, 17A Australia On sale Bianco 802676 Drainage Pump Controllers 3 Ph 415V In, 3 Ph 415V Out, 7.5KW, 17A. Description 3 Phase 415V In, 3 Phase 415V Out, 7.5kW, 17 A Technical Specifications Brand Bianco iCON Kilo Watts 7.5 KW Volts 415 V Features BIANCO iCON Variable Frequency Drive Controllers The iCON iDRIVE eliminates the requirement for large pressure tanks and pressure switches used for automatic operation as well as associated pressure cycling. The iCON iDRIVE provides both the ability to…

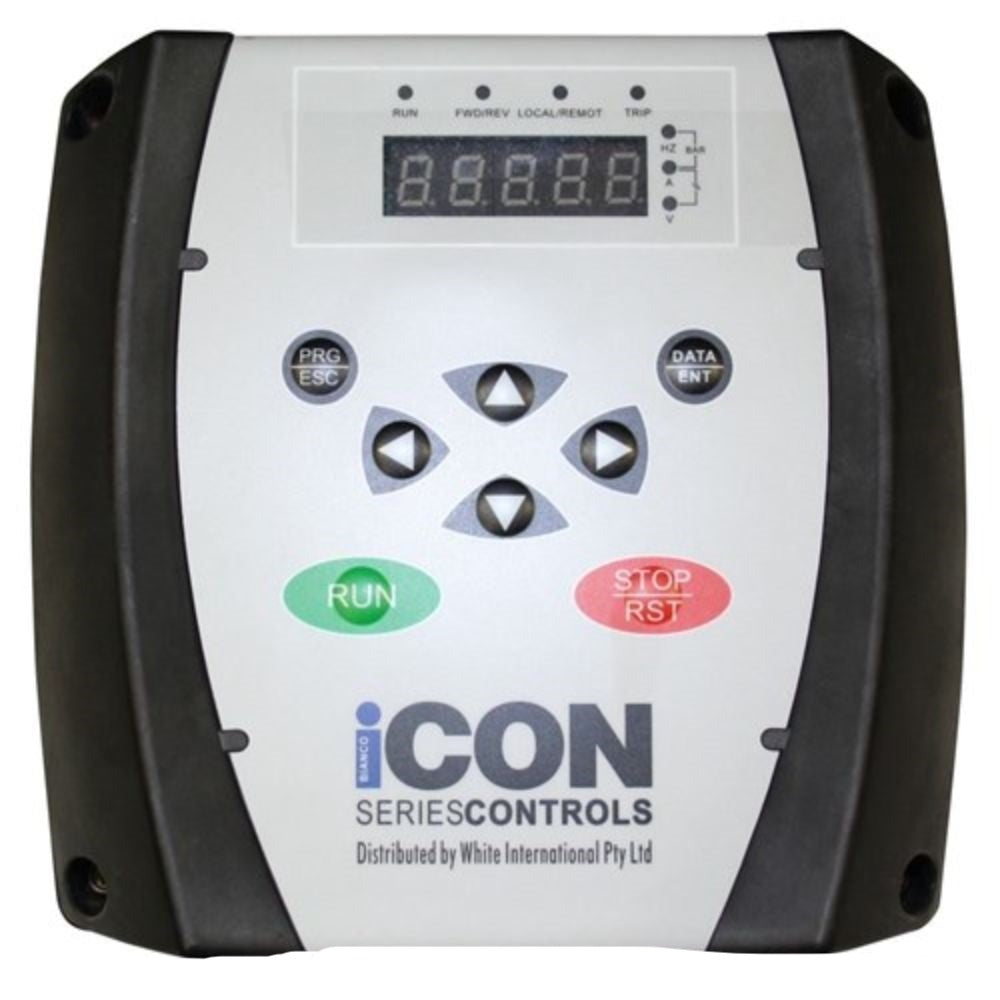

Bianco 802675 Drainage Pump Controllers 3 Ph 415V In 3 Ph 415V Out 5.5KW 13A Australia On sale Bianco 802675 Drainage Pump Controllers 3 Ph 415V In 3 Ph 415V Out 5.5KW 13A. Description BIANCO iCON Variable Frequency Drive Controllers The iCON iDRIVE eliminates the requirement for large pressure tanks and pressure switches used for automatic operation as well as associated pressure cycling. The iCON iDRIVE provides both the ability to conserve energy through only operating the pump according to the speed required to maintain constant pressure and further allowing for multiple set points to be…
